Règlementation
EN ISO 10524-1 | EN ISO 7396-1 | EN ISO 9170-1 | EN ISO 5359 | DIN 13260-2 | BS 5682 | EN ISO 15001

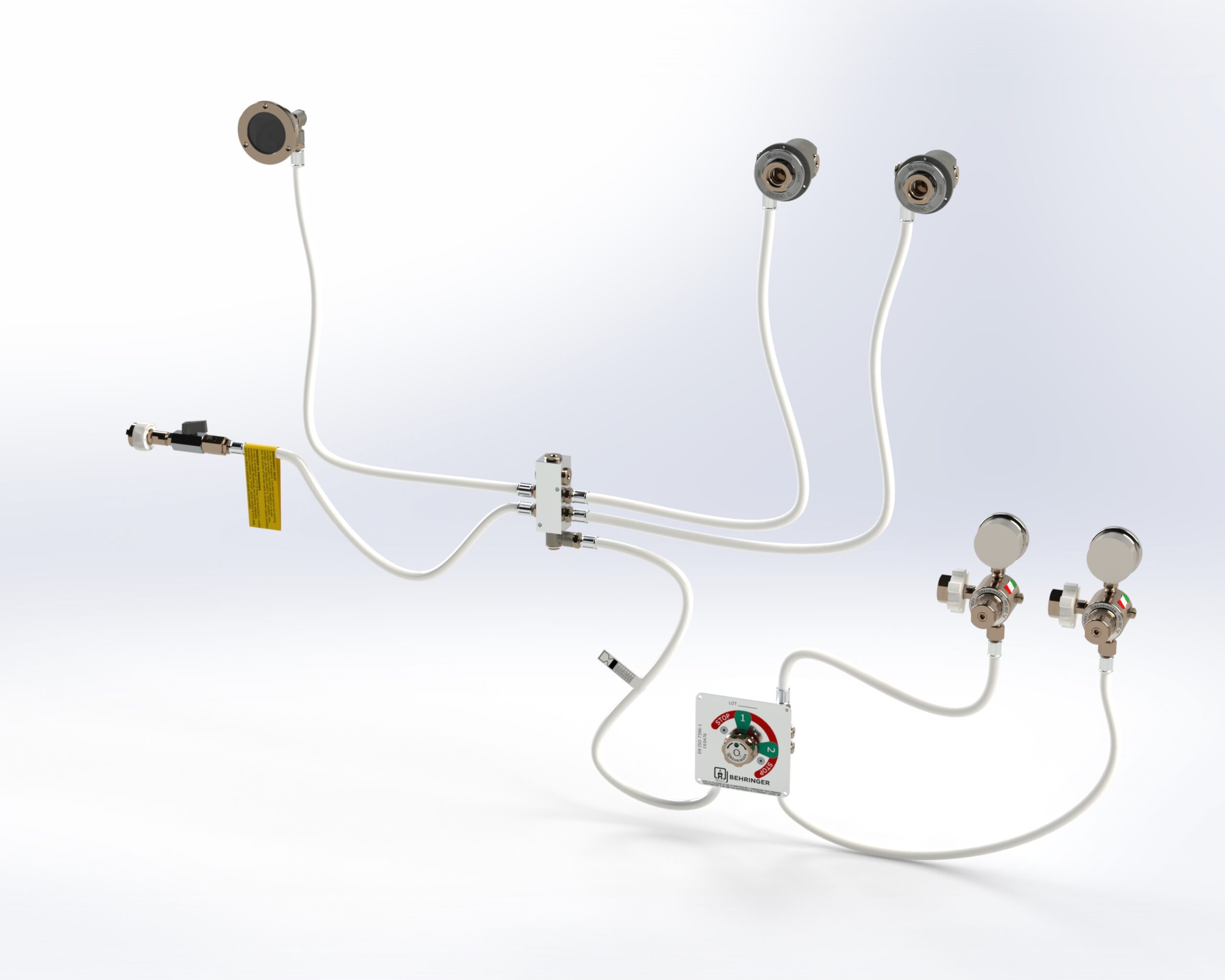

Oxygen distribution system for emergency vehicles with free installation; the system consists of 2 cylinder reducers, a manual or automatic heat exchanger, terminal units model DIN and BS complete with flanged base for easy installation on panel; equipped with provision for connection to the third source; it is classified as a Medical Device in accordance with Regulation (EU) 2017/745 (MDR) active in class IIb; the system meets all the requirements indicated by the reference standards for medical gas distribution systems; simple system adapted to any model of emergency vehicle. All components are assembled together by means of flexible low-pressure connections in accordance with EN ISO 5359.
N.1 pressure gauge scale 0-16 bar, class 2.5.
N.1 manual or automatic heat exchanger (I - II source).
N.1 emergency supply connection with directional valve and shut-off
DIN or BS model terminal units.
Low-pressure flexible connections in accordance with UNI EN ISO 5359 complete with swivel fittings.
| CODE | WITH OR WITHOUT REDUCER | INVERSION | N° TERMINAL UNIT AND TYPE | OPERATION PRESSURE |
| HKAMB009N0012530BSA2 | WITHOUT REDUCER | MANUAL | N. 3 BS 5682 | 4 ÷ 5 Bar |
| HKAMB010N0012530BSA2 | WITHOUT REDUCER | AUTOMATIC | N. 3 BS 5682 | 4 ÷ 5 Bar |
| HKAMB009N0012530DNA2 | WITHOUT REDUCER | MANUAL | N. 3 DIN 13260 | 4 ÷ 5 Bar |
| HKAMB010N0012530DNA2 | WITHOUT REDUCER | AUTOMATIC | N. 3 DIN 13260 | 4 ÷ 5 Bar |
