Règlementation
EN ISO 7396-1 | ISO 5145 | EN ISO 21969 | EN ISO 15001

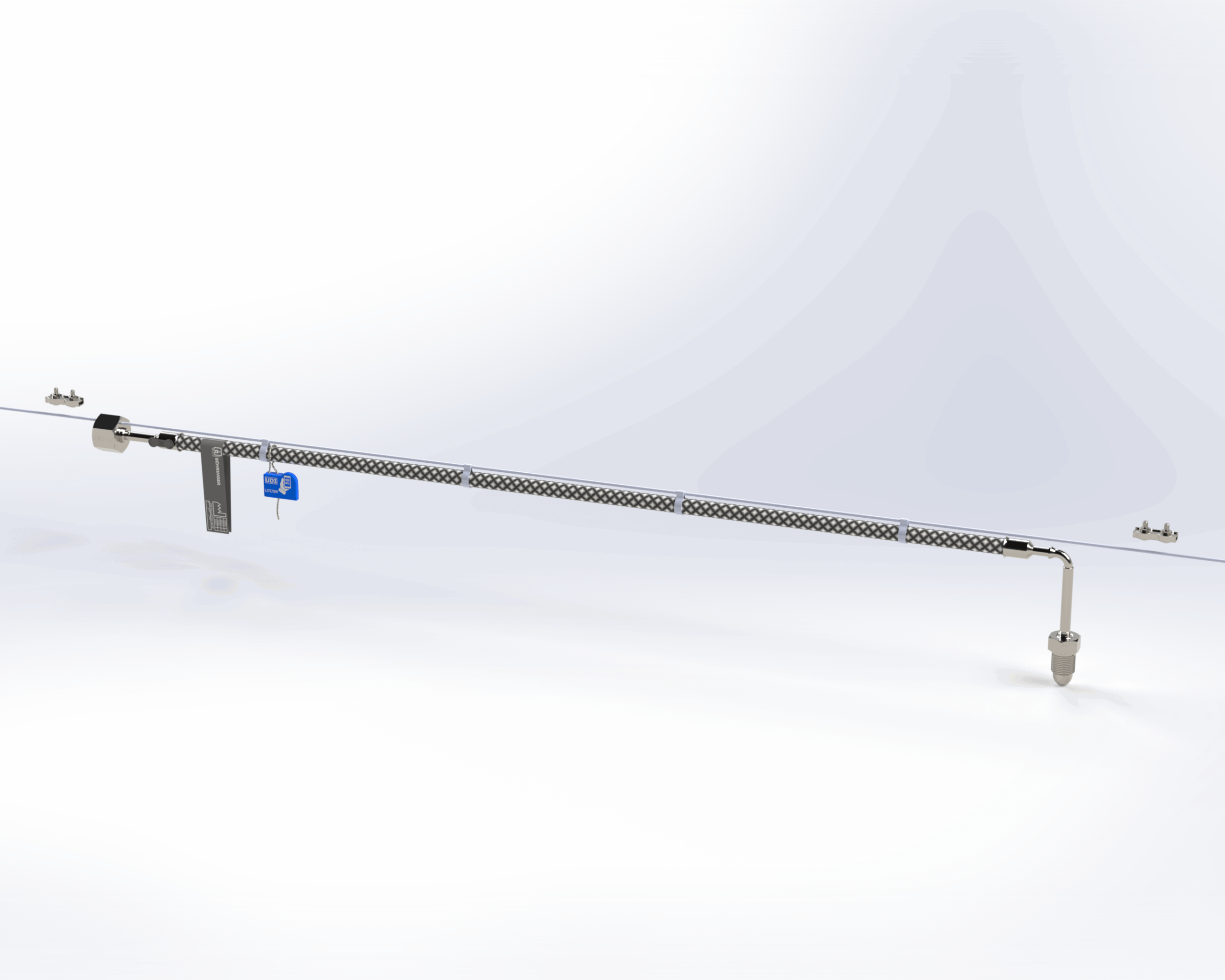

Flexible pour haute pression double tresses de renfort en acier inoxydable.
Equipé de raccords gaz spécifiques pour le raccordement Haute Pression de la bouteille à la rampe ou au panneau central selon la norme italienne.
Raccords avec écrou tournant fileté selon gaz et norme de chaque pays en acier inoxydable; câble de sécurité; disponible en longueurs de 1 et 2 mètres.
Flexible inox métallique à spires parallèles en AISI 316, avec deux tresses de renfort en AISI 304;
Raccords et connexions, des deux côtés, en AISI 316.
Câble en acier inoxydable anti-basculement 1 mètre plus long que le flexible.
| CODE | GAZ | LONGUEUR | RACCORD D’ENTRÉE - DE SORTIE | P. MAX |
| HS077MT1N02 | O2 (D) | 1 m. | DIN-9 - G¾" 'A' RH -> UNI-2 - W21,7x1/14" 'A' RH | 200 bar |
| HS077MT1N03 | O2 (BS) | 1 m. | BS-3 - G5/8" 'B' RH -> UNI-2 - W21,7x1/14" 'A' RH | 200 bar |
| HS077MT1N04 | O2 (CAH) | 1 m. | NF-F - SI22,91x1,814 'B' RH -> CAH - W21,7x1/14" 'A' RH | 200 bar |
| HS077MT1N05 | O2 (F-IND) | 1 m. | NF-F - SI22,91x1,814 'B' RH -> UNI-2 - W21,7x1/14" 'A' RH | 200 bar |
| HS077MT1N06 | O2 (CGA540) | 1 m. | CGA540 - .908-14NGO-RH 'A' -> UNI-2 - W21,7x1/14" 'A' RH | 200 bar |
| HS077MT1N10 | Air (D) | 1 m. | DIN-13 - G5/8" 'B' RH -> UNI-6 - W30x1/14" 'A' RH | 200 bar |
| HS077MT1N11 | Air (BS) | 1 m. | BS-3 - G5/8" 'B' RH -> UNI-6 - W30x1/14" 'A' RH | 200 bar |
| HS077MT1N12 | Air (F)-CAHOUET TYPE C | 1 m. | NF-D - W24x2 'A' RH -> CAH - W21,7x1/14" 'A' RH | 200 bar |
| HS077MT1N13 | Air (TYPE F) | 1 m. | NF-D - W24x2 'A' RH -> UNI-6 - W30x1/14" 'A' RH | 200 bar |
| HS077MT1N14 | Air (CGA) | 1 m. | CGA346 - .830-14NGO-RH 'A' -> UNI-6 - W30x1/14" 'A' RH | 200 bar |
| HS077MT1N16 | Air (IND) | 1 m. | NF-F - SI22,91x1,814 'B' RH -> UNI-6 - W30x1/14" 'A' RH | 200 bar |
| HS077MT1N17 | N2O (I-D) | 1 m. | UNI-9-DIN-11 - G3/8" 'A' RH -> UNI-9-DIN-11 - G3/8" 'A' RH | 200 bar |
| HS077MT1N19 | N2O (BS) | 1 m. | BS-13 - W11/16"x1/20" 'A' RH -> UNI-9-DIN-11 - G3/8" 'A' RH | 200 bar |
| HS077MT1N20 | N2O (F)-CAHOUET TYPE C | 1 m. | NF-G - SI26x1,5 'B' RH -> CAH - W21,7x1/14" 'A' RH | 200 bar |
| HS077MT1N21 | N2O (TYPE F) | 1 m. | NF-G - SI26x1,5 'B' RH -> UNI-9-DIN-11 - G3/8" 'A' RH | 200 bar |
| HS077MT1N22 | N2O (CGA) | 1 m. | CGA326 - .830-14NGO-RH 'A' -> UNI-9-DIN-11 - G3/8" 'A' RH | 200 bar |
| HS077MT1N24 | N2O (IND) | 1 m. | NF-F - SI22,91x1,814 'B' RH -> UNI-9-DIN-11 - G3/8" 'A' RH | 200 bar |
| HS077MT1N26 | N2 (D) | 1 m. | DIN-10 - W24,32x1/14" 'A' RH -> UNI-5 - W21,7x1/14" 'B' RH | 200 bar |
| HS077MT1N27 | N2 (BS) | 1 m. | BS-3 - G5/8" 'B' RH -> UNI-5 - W21,7x1/14" 'B' RH | 200 bar |
| HS077MT1N28 | N2 (F)-CAHOUET TYPE C | 1 m. | NF-C - SI21,7x1,814 'A' RH -> CAH - W21,7x1/14" 'A' RH | 200 bar |
| HS077MT1N29 | N2 (TYPE F) | 1 m. | NF-C - SI21,7x1,814 'A' RH -> UNI-5 - W21,7x1/14" 'B' RH | 200 bar |
| HS077MT1N30 | N2 (CGA) | 1 m. | CGA580 - .960-14NGO-RH 'B' -> UNI-5 - W21,7x1/14" 'B' RH | 200 bar |
| HS077MT1N32 | N2 (IND) | 1 m. | NF-F - SI22,91x1,814 'B' RH -> UNI-5 - W21,7x1/14" 'B' RH | 200 bar |
| HS077MT1N34 | CO2 (D) | 1 m. | DIN-6 - W21,8x1/14" 'A' RH -> UNI-10 - W27x2 'A' RH | 200 bar |
| HS077MT1N35 | CO2 (BS) | 1 m. | BS-8 - W0,860"x1/14" 'A' RH -> UNI-10 - W27x2 'A' RH | 200 bar |
| HS077MT1N36 | CO2 (F)-CAHOUET TYPE C | 1 m. | NF-C - SI21,7x1,814 'A' RH -> CAH - W21,7x1/14" 'A' RH | 200 bar |
| HS077MT1N37 | CO2 (TYPE F) | 1 m. | NF-C - SI21,7x1,814 'A' RH -> UNI-10 - W27x2 'A' RH | 200 bar |
| HS077MT1N38 | CO2 (CGA) | 1 m. | CGA320 - .830-14NGO-RH 'A' -> UNI-10 - W27x2 'A' RH | 200 bar |
| HS077MT1N40 | CO2 (IND) | 1 m. | NF-F - SI22,91x1,814 'B' RH -> UNI-10 - W27x2 'A' RH | 200 bar |
| HS077MT2N02 | O2 (D) | 2 m. | DIN-9 - G¾" 'A' RH -> UNI-2 - W21,7x1/14" 'A' RH | 200 bar |
| HS077MT2N03 | O2 (BS) | 2 m. | BS-3 - G5/8" 'B' RH -> UNI-2 - W21,7x1/14" 'A' RH | 200 bar |
| HS077MT2N04 | O2 (F)-CAHOUET TYPE C | 2 m. | NF-F - SI22,91x1,814 'B' RH -> CAH - W21,7x1/14" 'A' RH | 200 bar |
| HS077MT2N05 | O2 (TYPE F) | 2 m. | NF-F - SI22,91x1,814 'B' RH -> UNI-2 - W21,7x1/14" 'A' RH | 200 bar |
| HS077MT2N06 | O2 (CGA) | 2 m. | CGA540 - .908-14NGO-RH 'A' -> UNI-2 - W21,7x1/14" 'A' RH | 200 bar |
| HS077MT2N10 | Air (D) | 2 m. | DIN-13 - G5/8" 'B' RH -> UNI-6 - W30x1/14" 'A' RH | 200 bar |
| HS077MT2N11 | Air (BS) | 2 m. | BS-3 - G5/8" 'B' RH -> UNI-6 - W30x1/14" 'A' RH | 200 bar |
| HS077MT2N12 | Air (F)-CAHOUET TYPE C | 2 m. | NF-D - W24x2 'A' RH -> CAH - W21,7x1/14" 'A' RH | 200 bar |
| HS077MT2N13 | Air - TYPE F | 2 m. | NF-D - W24x2 'A' RH -> UNI-6 - W30x1/14" 'A' RH | 200 bar |
| HS077MT2N14 | Air - CGA | 2 m. | CGA346 - .830-14NGO-RH 'A' -> UNI-6 - W30x1/14" 'A' RH | 200 bar |
| HS077MT2N16 | Air - IND | 2 m. | NF-F - SI22,91x1,814 'B' RH -> UNI-6 - W30x1/14" 'A' RH | 200 bar |
| HS077MT2N17 | N2O (I-D) | 2 m. | UNI-9-DIN-11 - G3/8" 'A' RH -> UNI-9-DIN-11 - G3/8" 'A' RH | 200 bar |
| HS077MT2N19 | N2O (BS) | 2 m. | BS-13 - W11/16"x1/20" 'A' RH -> UNI-9-DIN-11 - G3/8" 'A' RH | 200 bar |
| HS077MT2N20 | N2O (F)-CAHOUET TYPE C | 2 m. | NF-G - SI26x1,5 'B' RH -> CAH - W21,7x1/14" 'A' RH | 200 bar |
| HS077MT2N21 | N2O - TYPE F | 2 m. | NF-G - SI26x1,5 'B' RH -> UNI-9-DIN-11 - G3/8" 'A' RH | 200 bar |
| HS077MT2N22 | N2O - CGA | 2 m. | CGA326 - .830-14NGO-RH 'A' -> UNI-9-DIN-11 - G3/8" 'A' RH | 200 bar |
| HS077MT2N24 | N2O - IND | 2 m. | NF-F - SI22,91x1,814 'B' RH -> UNI-9-DIN-11 - G3/8" 'A' RH | 200 bar |
| HS077MT2N26 | N2 (D) | 2 m. | DIN-10 - W24,32x1/14" 'A' RH -> UNI-5 - W21,7x1/14" 'B' RH | 200 bar |
| HS077MT2N27 | N2 (BS) | 2 m. | BS-3 - G5/8" 'B' RH -> UNI-5 - W21,7x1/14" 'B' RH | 200 bar |
| HS077MT2N28 | N2 (F)-CAHOUET TYPE C | 2 m. | NF-C - SI21,7x1,814 'A' RH -> CAH - W21,7x1/14" 'A' RH | 200 bar |
| HS077MT2N29 | N2 (TYPE F) | 2 m. | NF-C - SI21,7x1,814 'A' RH -> UNI-5 - W21,7x1/14" 'B' RH | 200 bar |
| HS077MT2N30 | N2 (CGA) | 2 m. | CGA580 - .960-14NGO-RH 'B' -> UNI-5 - W21,7x1/14" 'B' RH | 200 bar |
| HS077MT2N32 | N2 (IND) | 2 m. | NF-F - SI22,91x1,814 'B' RH -> UNI-5 - W21,7x1/14" 'B' RH | 200 bar |
| HS077MT2N34 | CO2 (D) | 2 m. | DIN-6 - W21,8x1/14" 'A' RH -> UNI-10 - W27x2 'A' RH | 200 bar |
| HS077MT2N35 | CO2 (BS) | 2 m. | BS-8 - W0,860"x1/14" 'A' RH -> UNI-10 - W27x2 'A' RH | 200 bar |
| HS077MT2N36 | CO2 (F)-CAHOUET TYPE C | 2 m. | NF-C - SI21,7x1,814 'A' RH -> CAH - W21,7x1/14" 'A' RH | 200 bar |
| HS077MT2N37 | CO2 (TYPE F) | 2 m. | NF-C - SI21,7x1,814 'A' RH -> UNI-10 - W27x2 'A' RH | 200 bar |
| HS077MT2N38 | CO2 (CGA) | 2 m. | CGA320 - .830-14NGO-RH 'A' -> UNI-10 - W27x2 'A' RH | 200 bar |
| HS077MT2N40 | CO2 (IND) | 2 m. | NF-F - SI22,91x1,814 'B' RH -> UNI-10 - W27x2 'A' RH | 200 bar |
