Règlementation
NF S 90-116 | UNI 9507 | UNI EN ISO 15002 | DIN 13260-2 | BS 5682 | SS 8752430

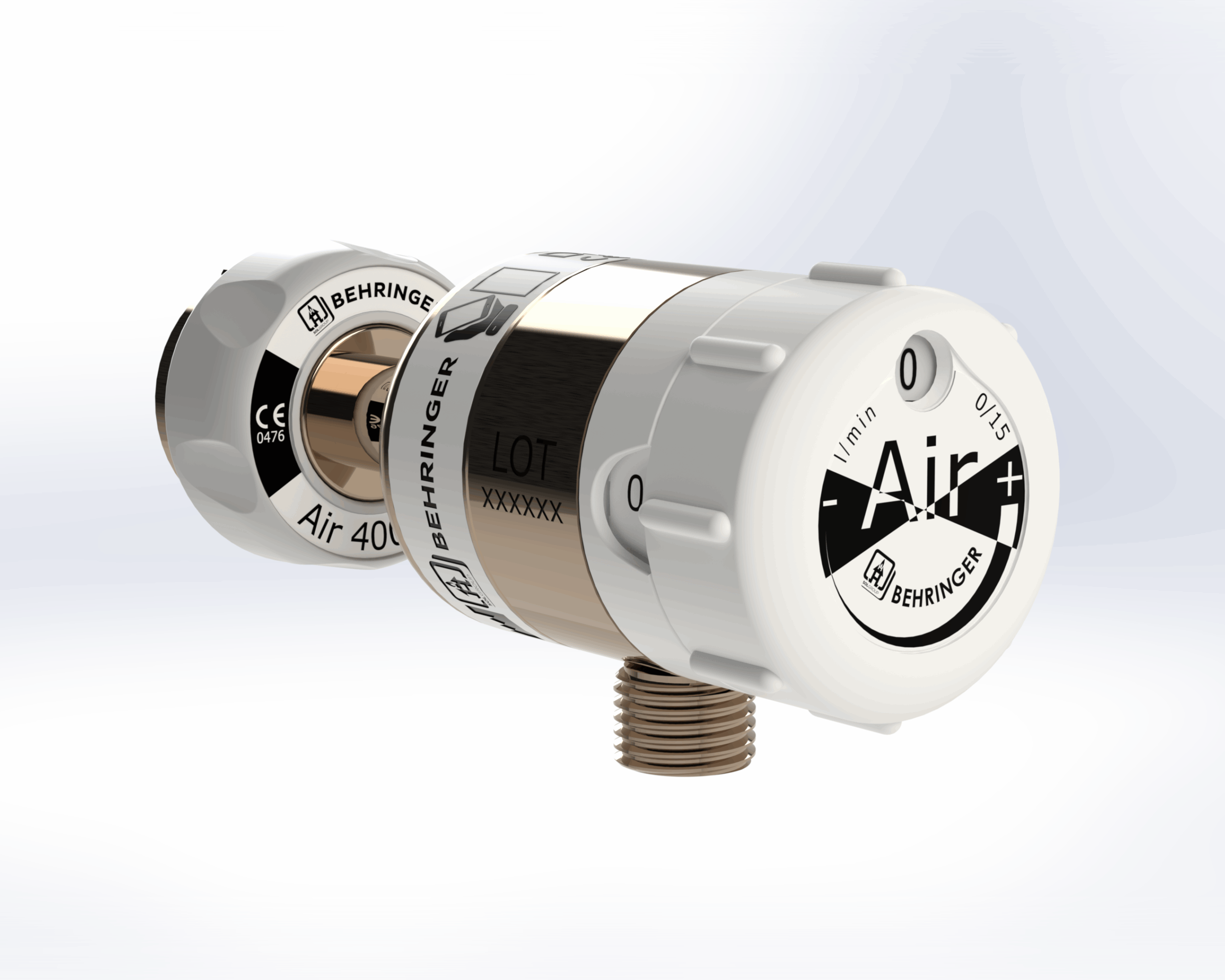

Trigger flowmeters are instantaneous dispensers used to deliver medical gases in oxygen therapy; the flow rate is guaranteed by calibrated orifices; due to their ergonomic design and ease of use, they are also suitable for heavy-duty use and on emergency and rescue vehicles.
-Chemical nickel-plated brass body.
-Diaphragm with calibrated holes in AISI 316 stainless steel.
-Inlet with specific gas coupling or G 1/4’ M RIGHT thread.
-Threaded outlet G 1/4’ M RIGHT or M12x1.25 M RIGHT.
-Snap adjustment knob in ABS.
-O-Ring seal in EPDM and silicone.
| CODE | GAS | INLET CONNECTION | OUTLET CONNECTION | SCALE | BAR |
| HD056 | Air | G 1/4" M | G 1/4" M | 0 - 15 l/min | 4,5 |
| HD058 | Air | UNI 9507 | G 1/4" M | 0 - 15 l/min | 4,5 |
| HD059 | Air | AFNOR NF S 90-116 | G 1/4" M | 0 - 15 l/min | 4,5 |
| HD060 | Air | DIN 13260-2 | G 1/4" M | 0 - 15 l/min | 4,5 |
| HD061 | Air | BS 5682 | G 1/4" M | 0 - 15 l/min | 4,5 |
| HD062 | Air | SS 8752430 | G 1/4" M | 0 - 15 l/min | 4,5 |
| HD111 | Air | G 1/4" M | M12x1,25 M | 0 - 15 l/min | 4,5 |
| HD112 | Air | AFNOR NF S 90-116 | M12x1,25 M | 0 - 15 l/min | 4,5 |
| HD221 | Air | G 1/4" M | 9/16" UNF M | 0 - 15 l/min | 4,5 |
| HD223 | Air | UNI 9507 | 9/16" UNF M | 0 - 15 l/min | 4,5 |
| HD224 | Air | AFNOR NF S 90-116 | 9/16" UNF M | 0 - 15 l/min | 4,5 |
| HD225 | Air | DIN 13260-2 | 9/16" UNF M | 0 - 15 l/min | 4,5 |
| HD226 | Air | BS 5682 | 9/16" UNF M | 0 - 15 l/min | 4,5 |
| HD227 | Air | SS 8752430 | 9/16" UNF M | 0 - 15 l/min | 4,5 |
