Règlementation
NF S 90-116 | UNI 9507 | UNI EN ISO 15002 | DIN 13260-2 | BS 5682 | SS 8752430

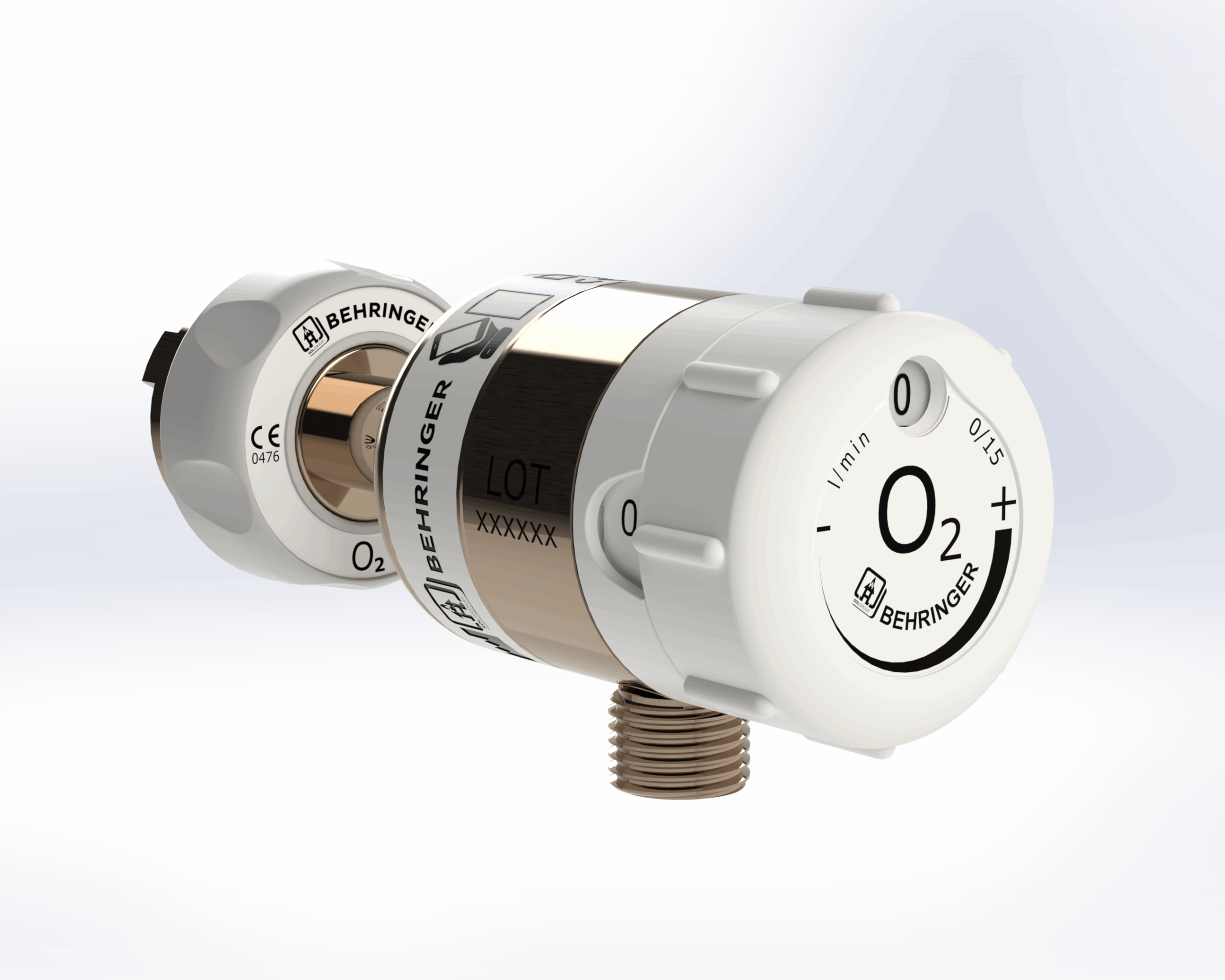

Trigger flowmeters are instantaneous dispensers used to deliver medical gases in oxygen therapy; the flow rate is guaranteed by calibrated orifices; due to their ergonomic design and ease of use, they are also suitable for heavy-duty use and on emergency and rescue vehicles.
| CODE | GAS | INLET CONNECTION | OUTLET CONNECTION | SCALE | BAR |
| HD015 | O2 | G 1/4" M | G 1/4" M | 0-30 l/min | 4,5 |
| HD017 | O2 | UNI 9507 | G 1/4" M | 0-30 l/min | 4,5 |
| HD018 | O2 | AFNOR NF S 90-116 | G 1/4" M | 0-30 l/min | 4,5 |
| HD019 | O2 | DIN 13260-2 | G 1/4" M | 0-30 l/min | 4,5 |
| HD020 | O2 | BS 5682 | G 1/4" M | 0-30 l/min | 4,5 |
| HD021 | O2 | SS 8752430 | G 1/4" M | 0-30 l/min | 4,5 |
| HD101 | O2 | G 1/4" M | M12x1,25 M | 0-30 l/min | 4,5 |
| HD102 | O2 | AFNOR NF S 90-116 | M12x1,25 M | 0-30 l/min | 4,5 |
| HD185 | O2 | G 1/4" M | 9/16" UNF M | 0-30 l/min | 4,5 |
| HD187 | O2 | UNI 9507 | 9/16" UNF M | 0-30 l/min | 4,5 |
| HD188 | O2 | AFNOR NF S 90-116 | 9/16" UNF M | 0-30 l/min | 4,5 |
| HD189 | O2 | DIN 13260-2 | 9/16" UNF M | 0-30 l/min | 4,5 |
| HD190 | O2 | BS 5682 | 9/16" UNF M | 0-30 l/min | 4,5 |
| HD191 | O2 | SS 8752430 | 9/16" UNF M | 0-30 l/min | 4,5 |
