Règlementation
EN ISO 10524-1 | EN ISO 7396-1 | EN ISO 9170-1 | NF S 90-116 | UNI 9507 | EN ISO 5359 | EN ISO 15001

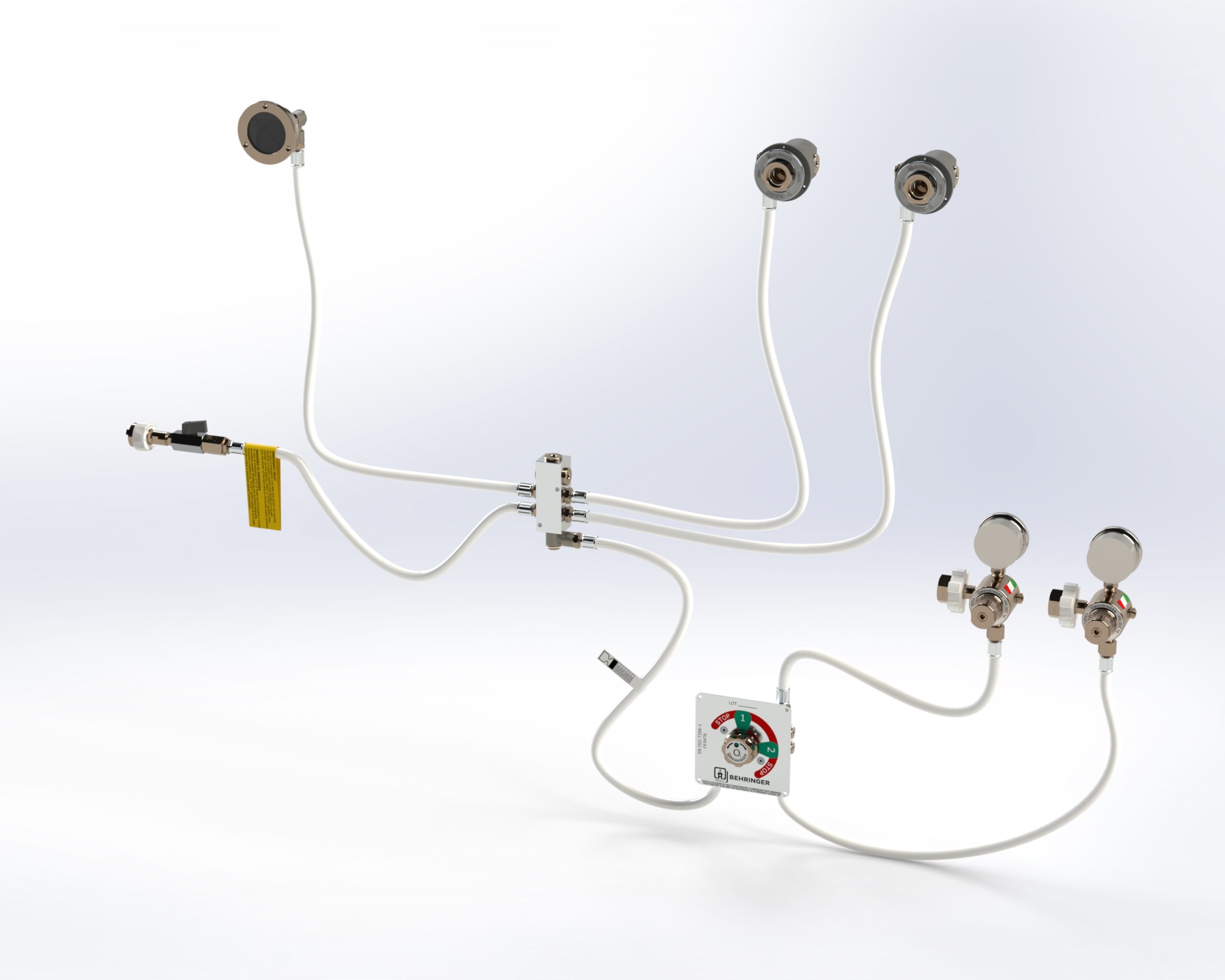

A complete system for the distribution of oxygen in free-standing emergency vehicles; the system consists of two HF model pressure reducers complete with manotransducer, an exchanger that can be manual or automatic, UNI or AFNOR model terminal units complete with flanged base for easy panel installation; equipped with predisposition for connection to the third source; classified as a Medical Device in accordance with Regulation (EU) 2017/745 (MDR) active in class IIb; the system meets all the requirements indicated by the reference standards for medical gas distribution systems; simple system adapted to any model of emergency vehicle. All components are assembled together by means of flexible low-pressure connections in accordance with EN ISO 5359.
N.2 réducteurs modèle HF avec manotransducteur, sortie 4 ..... 20mA, IP 65, cl. 2,5, 0-315 bars, EN837-1.
N.1 Jauge échelle 0-10 bar, classe 2.5.
N.1 échangeur manuel (source I - II).
N.1 raccordement à l'alimentation de secours avec vanne directionnelle, vanne d'arrêt et raccord modèle AFNOR, BS ou DIN.
Unités terminales modèle UNI, AFNOR, DIN OU BS.
Raccords flexibles pour basse pression conformes à la norme UNI EN ISO 5359 avec raccords pivotants.
| CODE | WITH OR WITHOUT REDUCER | MANOMETER WITH TRASDUCER | REDUCER OUTPUT | INVERSION | N° OF TERMINAL UNITS AND TYPE | OPERATION PRESSURE |
| HKAMB001 | WITH REDUCER | YES | HOSE HOLDER Ø6 mm | MANUAL | N. 2 UNI 9507 | 4 ÷ 5 bar |
| HKAMB001S | WITH REDUCER | YES | HOSE HOLDER Ø6 mm | AUTOMATIC | N. 2 UNI 9507 | 4 ÷ 5 bar |
| HKAMB002 | WITH REDUCER | YES | AFNOR NF S 90-116 SOCKET | MANUAL | N. 2 UNI 9507 | 4 ÷ 5 bar |
| HKAMB002S | WITH REDUCER | YES | AFNOR NF S 90-116 SOCKET | AUTOMATIC | N. 2 UNI 9507 | 4 ÷ 5 bar |
| HKAMB003 | WITH REDUCER | YES | HOSE HOLDER Ø6 mm | MANUAL | N. 3 UNI 9507 |
4 ÷ 5 bar |
| HKAMB003S | WITH REDUCER | YES | HOSE HOLDER Ø6 mm | AUTOMATIC | N. 3 UNI 9507 |
4 ÷ 5 bar |
| HKAMB004 | WITH REDUCER | YES | AFNOR NF S 90-116 SOCKET | MANUAL | N. 3 UNI 9507 |
4 ÷ 5 bar |
| HKAMB004S | WITH REDUCER | YES | AFNOR NF S 90-116 SOCKET | AUTOMATIC | N. 3 UNI 9507 |
4 ÷ 5 bar |
